MESHnet® Tactical Mobile Router TMR-304

Enterprise-class L3 Router, Radio Access Point & Multimedia Server

The TMR-304 is a 6-port L2 switch and L3 router that provides tactical data distribution for your tactical platform. The TMR-304 interfaces with Ethernet, USB, analog and IP based radios connecting both data and voice to VoIP services supporting crew intercom, telephony, chat, battle management systems (BMS), remote and local radio net access. Using a combination of standard and tactical protocols, the TMR-304 creates a network of interconnected vehicle platforms and transports data and voice between any connected user access devices on the network.



360 Product View

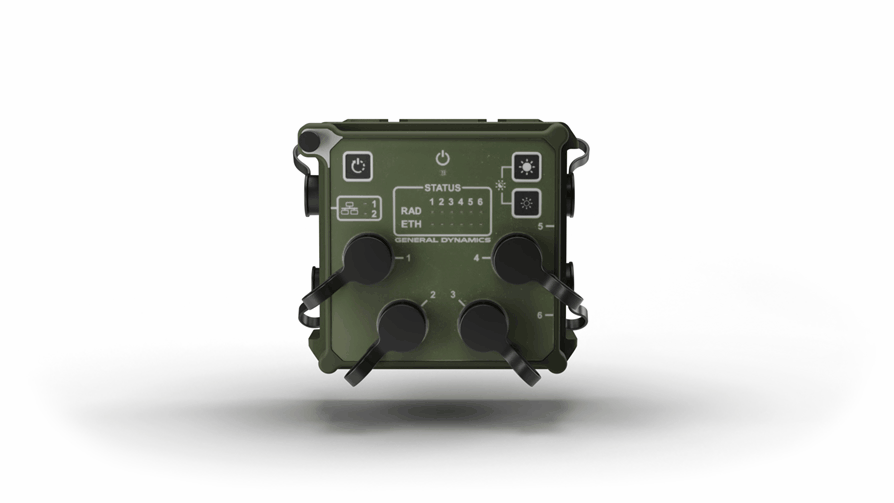

TMR-304 360 GIF

Features

  • Message Delivery Service with Transport Performance Enhancing Proxies, Web Proxies
  • Auto-selection of UDP, TCP, CFP and DTN transport protocols based on path quality
  • Tactical Domain Name Service with RFC 1034/1035 DNS interface
  • Network Quality of Service (QoS) using Differentiated Services Code Point (DSCP)
  • Open Shortest Path First (OSPF) routing for desired links
  • Low Bandwidth Routing Protocol (LBRP) for disadvantaged links
  • RFC4838 DTN for disrupted paths
  • Multi-protocol inter-domain route re-distribution
  • Radio aware protocols for link metrics
  • IPv4, with support for IPv6
  • RFC 2131 Dynamic Host Control Protocol (DHCP) server
  • Network Time Protocol (NTP) server
  • Network management via web browser
  • Easily customized Linux software base
  • Small form factor reduces space, weight and power needs
  • MIL-STD-810D and MIL-STD-461E qualification for reliable operation in harsh environments
  • MIL-STD-1275B vehicle power

Specifications

Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -51°C to +80°C (-60°F to +176°F) storage
MIL-STD-810D Tested vibration (wheeled and tracked), transit drop, shock, salt fog, sand and dust, fluid contamination, NBC decontamination, immersion, fungus and altitude
Height 109 mm (4.29 inches)
Width 180 mm (7.09 inches)
Depth 152 mm (6.00 inches)
Weight 2.24 kg (4.95 pounds)

Contact Us to learn more about the TMR-304.
